RESPIRATORY

Management of chronic obstructive pulmonary disease

An outline of the steps in the diagnosis and treatment of chronic obstructive pulmonary disease

Prof Stephen Lane, Consultant Respiratory Physician and Allergist, Tallaght Hospital, Dublin, Dr Minesh Kooblall, Respiratory Registrar, Tallaght Hospital, Dublin, Dr Eddie Moloney, Consultant Respiratory Physician, Tallaght Hospital, Dublin, Dr Daniel O’Hare, Respiratory SHO, Tallaght Hospital, Dublin and Dr Anna Sheane, Respiratory SHO, Tallaght Hospital, Dublin

March 24, 2014

Article
Similar articles
  • Chronic Obstructive Pulmonary disease (COPD) is a syndrome of progressive airflow limitation caused by chronic inflammation of the airways and lung parenchyma.1 It is estimated that 440,000 people in Ireland have COPD.2

    The primary physiological abnormality is a reduction in the forced expiratory volume in one second (FEV1) in adults over 30 years of age of approximately 30ml per year to nearly 60ml per year. COPD begins with an insidious phase of deterioration in lung function. The onset of symptoms is variable but often does not occur until there has been a deterioration of 50% in the predicted value of FEV1.

    Further physiological abnormalities seen in COPD include a reduction in the diffusing capacity for carbon dioxide, hypoxaemia and alveolar hypoventilation. Hyperinflation of the lungs, primarily from an increase in the functional residual capacity of the lungs, further inhibits the mechanism of breathing by putting the respiratory muscles at a mechanical disadvantage. These factors all combine to increase the work of breathing and to greatly reduce exercise tolerance.4

    Diagnosis, staging and prognosis

    Because the majority of cases occur in patients who have smoked, all current or former smokers should be considered at increased risk for COPD. Other risk factors which account for far fewer cases include alpha-1 antitrypsin deficiency, airway hyper-responsiveness and indoor air pollution. In the past, FEV1 was the only parameter used in staging COPD (FEV1/FVC of < 0.70). Stage I COPD showed FEV1 > 80%; stage II showed FEV1 of 50-80%; stage III showed  FEV1 of 30-50%; and FEV1 < 30% predicted was classified as stage IV COPD. It was believed that most patients would follow a disease course where disease severity would track the severity of their airflow limitation.5

    However, updated guidelines from 2011 from the Global Initiative for Chronic Obstructive Lung Disease (GOLD) reflect that COPD is more complex than the previous simplistic single-factor assessment system allows for, and that the FEV1 is an unreliable marker of overall disease severity. A combined approach to COPD assessment is now recommended, which involves assessment of the current level of patients’ symptoms, the severity of spirometric abnormality, exacerbation risk and the presence of comorbidities.2

    Symptoms can be objectively assessed using either the modified British Medical Research Council (mMRC) questionnaire for assessing the severity of breathlessness or by using a more comprehensive symptom assessment tool such as the COPD assessment test (CAT). Two methods exist for assessing exacerbation risk: firstly, using GOLD spirometric classification as previously outlined; or secondly by asking the patient how many exacerbations they have had in the previous year with ≥ 2 indicating high risk. If there is a discrepancy between the two, then the higher risk indicator should be used.

    The combined assessment of COPD allows a greater understanding of the impact of COPD on a patient’s health status and places them in one of four grades (see Figure 1). The groups can be summarised as follows:

    • Patient group A – low risk, less symptoms
    • Patient group B – low risk, more symptoms
    • Patient group C – high risk, less symptoms
    • Patient group D – high risk, more symptoms.

    It also forms the basis for individualised management of COPD, with grade A and B management based primarily on bronchodilation, and grades C and D on bronchodilation with an anti-inflammatory agent.

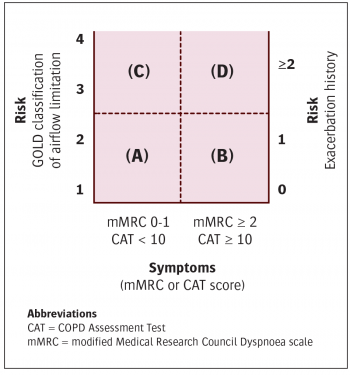

    Figure 1. Combined assessment of COPD according to GOLD guidelines
    Figure 1. Combined assessment of COPD according to GOLD guidelines (click to enlarge)

    Management of stable COPD

    The major goals of therapy include smoking cessation, symptom relief, improvement in physiological function and limitation of complications such as abnormal gas exchange and exacerbations of the disease.

    Smoking cessation

    Smoking cessation is the only intervention known to be effective in modifying disease progression, and abstinence results in a 50% reduction in the rate of lung-function decline in patients with COPD.6 All patients should be encouraged to stop smoking and appropriate pharmacological and behavioural support should be made available.

    Vaccination

    Annual influenza vaccination and pneumococcal vaccination should be offered to all patients in an attempt to reduce both disease-specific mortality and mortality from all causes.7

    Drug therapy

    Inhaled bronchodilators

    Inhaled bronchodilators are the mainstay for pharmacotherapy in COPD. They both reduce symptoms as well as reducing exacerbations and improving quality of life (QoL).8 Inhaled bronchodilators can be divided into categories based on their mechanism of action and duration of action.

    Anti-muscarinic/anti-cholinergic agents can be both short (SAMA) and long (LAMA) acting. These agents act by antagonising the bronchoconstricting effects of the parasympathetic nervous system. Examples of SAMA include ipratropium and LAMA include tiotropium and glycopyrronium. Conversely, beta-2 agonists, which can also be short (SABA) or long (LABA) acting, function by augmenting the effects of the sympathetic nervous system, thus resulting in bronchodilation. Examples of SABA are salbutamol and terbutaline, and LABA include salmeterol, formoterol and indacaterol.

    Both SAMA and SABA have an immediate effect on symptoms and result in bronchodilation for four to six hours and are therefore useful in a prn capacity, and there is a role for prn monotherapy in patients with mild disease.9 LAMAs have been the mainstay of bronchodilator therapy in COPD since the UPLIFT study in 2008 which showed that tiotropium improved FEV1, QoL and decreased exacerbation rate.10 LABAs such as salmeterol and formoterol provide bronchodilation over approximately 12 hours. Indacaterol is a once-daily LABA licensed for use in COPD.

    More recently, the first once-daily combination inhaler was made available on the Irish market. It combines both a LAMA (glycopyrronium) and a LABA (indacaterol) and is indicated in grade B, C and D COPD patients who remain symptomatic on single-agent bronchodilator therapy, in combination with an inhaled corticosteroid in grade C and D.2

    Inhaled corticosteroids

    Initial studies using improvement in FEV1 as their primary outcome proved disappointing for inhaled corticosteroid (ICS) use in the management of COPD. However, some of the same studies also showed that ICS improved patient symptoms, frequency of exacerbations and overall health status.11,12 The ISOLDE trial showed that patients with a mean FEV1 of approximately 50% predicted, who were treated with ICS, showed a 25% reduction in frequency of exacerbations.13 These findings suggest that inhaled corticosteroids do provide clinical benefit to patients independent of their FEV1 response. ICS use is therefore recommended in patients with moderate-to-severe airflow limitation who have ongoing symptoms and frequent exacerbations despite optimal bronchodilator therapy (grade C and D).

    Theophylline

    In addition to maximal inhaler therapy, low-dose oral theophylline has been shown to improve FEV1, forced vital capacity (FVC) and gas exchange over placebo.14 Its mechanisms are controversial and theophylline can be toxic, however it is thought to provide additional bronchodilation. Frequent monitoring for supratherapeutic levels is critical.

    Oral corticosteroids and other pharmacological drugs

    Oral corticosteroids are useful in managing an acute exacerbation of COPD. Although a trial of oral corticosteroids may be useful in detecting coexisting asthma, it is a poor predictor of the response to inhaled corticosteroids among patients with COPD. Therefore oral corticosteroids should not be used in the routine management of stable COPD.15 Other pharmacological drugs that have been found to be beneficial in COPD patients include phosphodiesterase-4 inhibitors, mucolytics and antioxidants.

    Pulmonary rehabilitation

    Pulmonary rehabilitation has been shown to improve QoL and exercise tolerance, and to reduce the number of hospitalisations related to COPD.16,17 It should be considered for patients with clinically significant exertional symptoms. Pulmonary rehabilitation is best delivered via a multi-disciplinary approach, incorporating a personalised aerobic programme, disease education, psychosocial counselling and nutritional support.

    Supplementary oxygen

    Testing for hypoxaemia is critical. Clinical trials have shown that supplementary oxygen for 15 or more hours a day improves survival and QoL in hypoxic patients with COPD.18 It should be initiated in all stable patients who have chronic hypoxaemia at rest (SpO2 < 88% or PaO2 < 7.3 kPa).19 Supplemental oxygen should be titrated to maintain an oxygen saturation of at least 90% at all times. To quantify the need for supplementary oxygen during exercise, rest and sleep, pulse oximetry must be performed during all three conditions.

    Hypercapnoea resulting from an increase in CO2 production or a decrease in alveolar ventilation is a feature of advanced disease. Patients on supplementary oxygen are at an increased risk of developing worsening hypercapnoea, thought to be due to the reduced capacity for oxygenated haemoglobin to carry carbon dioxide, known as the Haldane effect. Safe administration of oxygen in these patients can be achieved by close monitoring of arterial blood gas and slow titration of inspired oxygen in small increments to achieve the desired oxygen saturation.

    Trials of non-invasive positive-pressure ventilation have been conducted in patients with stable COPD. Although hypercapnoea can be improved, improvement often comes at the cost of increased hyperinflation. A two-year trial of non-invasive positive-pressure ventilation in addition to supplementary oxygen in patients with alveolar hypoventilation demonstrated improvements in dyspnoea and QoL but only small improvement in arterial carbon dioxide levels.

    Surgery

    Lung volume reduction surgery can reduce hyperinflation and should be considered in patients with severe upper lobe emphysema and reduced exercise tolerance who are not faring well with medical therapy alone. The National Emphysema Trial, which enrolled 1,218 patients and randomised two groups to either lung volume reduction surgery or maximal medical therapy, demonstrated varying benefits between patient groups. Survival benefit was most marked in patients with predominantly upper lobe emphysema and low exercise capacity. However, an increase in mortality was noted in severe patients with a FEV1 < 20% and either a diffusing capacity for carbon monoxide < 20% or non-upper lobe emphysema on chest CT.20

    Single-lung transplantation is a surgical option for patients with end-stage emphysema. It is usually reserved until the FEV1 is < 20% of predicted value, the diffusing capacity of the lung for carbon monoxide (DLCO) is < 20% or the clinical course becomes life-threatening. Although functional capacity has been shown to improve following the procedure, it does not appear to significantly improve survival.21

    Conclusion

    COPD is a preventable and treatable chronic disease and is often underdiagnosed and undertreated in clinical practice. Although new drugs are constantly emerging on the market, primary prevention should always remain the first line in the management plan. Awareness of the strong link between COPD and smoking should constantly be stressed to healthcare professionals, healthcare providers and the general public.

    References

    1. Global strategy for the diagnosis, management, and prevention of chronic obstructive pulmonary disease. Revised 2014. Global Initiative for Chronic Obstructive Lung Disease (GOLD). www.goldcopd.org (accessed on January 23, 2014)
    2. Schirnhofer L, Lamprecht B, Vollmer WM et al. COPD prevalence in Salzburg, Austria: results from the Burden of Obstructive Lung Disease (BOLD) Study. Chest 2007; 131: 29-36
    3. Fabbri LM, Hurd SS. Global strategy for the diagnosis, management and prevention of COPD: 2003 update. Eur Respir J 2003; 22: 1-2
    4. Sutherland ER, Cherniack RM. Management of chronic obstructive pulmonary disease. N Engl J Med 2004; 350: 2689-2697. doi: 10.1056/NEJMra030415
    5. Global Initiative for Chronic Obstructive Lung Disease (GOLD). Global strategy for the diagnosis, management and prevention of chronic pulmonary disease, 2001. http://www.goldcopd.org/Guidelines/guidelines-resources.html
    6. Anthonisen NR, Connett JE, Murray RP. Smoking and lung function of Lung Health Study participants after 11 years. Am J Respir Crit Care Med 2002; 166: 675-9
    7. Nichol KL, Margolis KL, Wuorenma J, Von Sternberg T. The efficacy and cost effectiveness of vaccination against influenza among elderly persons living in the community. N Engl J Med 1994; 331: 778-84
    8. O’Donnell DE, Lam M, Webb KA. Spirometric correlates of improvement in exercise performance after anticholinergic therapy in chronic obstructive pulmonary disease. Am J Respir Crit Care Med 1999; 160: 542-9
    9. Combivent Inhalation Aerosol Study Group. In chronic obstructive pulmonary disease, a combination of ipratropium and albuterol is more effective than either agent alone: an 85-day multicenter trial. Chest 1994; 105: 1411-9
    10. Corhay JL, Louis R. The UPLIFT study (Understanding Potential Long-term Impacts on Function with Tiotropium). Rev Med Liege 2009 Jan; 64(1): 52-7
    11. Spencer S, Calverley PM, Sherwood Burge P, Jones PW. Health status deterioration in patients with chronic obstructive pulmonary disease. Am J Respir Crit Care Med 2001; 163: 122-8
    12. The Lung Health Study Research Group. Effect of inhaled triamcinolone on the decline in pulmonary function in chronic obstructive pulmonary disease. N Engl J Med 2000; 343: 1902-9
    13. Burge PS, Calverley PM, Jones PW et al. Randomised, double blind, placebo controlled study of fluticasone propionate in patients with moderate to severe chronic obstructive pulmonary disease: the ISOLDE trial. BMJ 2000; 320: 1297-303
    14. Ram FS, Jones PW, Castro AA et al. Oral theophylline for chronic obstructive pulmonary disease. Cochrane Database Syst Rev 2002; (4): CD003902
    15. Walters JA, Walters EH, Wood-Baker. Oral corticosteroids for stable chronic obstructive pulmonary disease. Cochrane Database Syst Rev 2005 Jul 20; (3): CD005374
    16. Ries AL, Kaplan RM, Limberg TM, Prewitt LM. Effects of pulmonary rehabilitation on physiologic and psychosocial outcomes in patients with chronic obstructive pulmonary disease. Ann Intern Med 1995; 122(11): 823
    17. Puhan MA, Scharplatz M, Troosters T, Steurer J. Respiratory rehabilitation after acute exacerbation of COPD may reduce risk for readmission and mortality – a systematic review. Respir Res 2005; 6: 54
    18. Long term domiciliary oxygen therapy in chronic hypoxic cor pulmonale complicating chronic bronchitis and emphysema. Report of the Medical Research Council Working Party. Lancet 1981; 1(8222): 681
    19. Qaseem A, Wilt TJ, Weinberger SE et al. Diagnosis and management of stable chronic obstructive pulmonary disease: a clinical practice guideline update from the American College of Physicians, American College of Chest Physicians, American Thoracic Society, and European Respiratory Society, American Thoracic Society, European Respiratory Society. Ann Intern Med 2011; 155(3): 179
    20. Fishman A, Martinez F, Naunheim K et al. A randomized trial comparing lung-volume-reduction surgery with medical therapy for severe emphysema. N Engl J Med 2003; 348(21): 2059
    21. Hosenpud JD, Bennett LE, Keck BM et al. Effect of diagnosis on survival benefit of lung transplantation for end-stage lung disease. Lancet 1998; 351: 24-7
